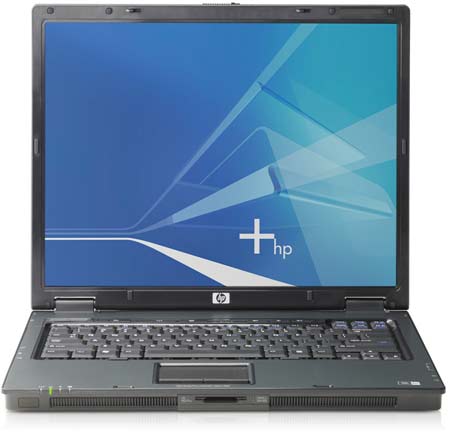

HP nc6120

Technické parametry

Intel® Celeron® M 350/360/370 (1,5 GHz, sběrnice FSB 400 MHz, L2 cache 1 MB)
Displej 15,0" XGA (rozlišení 1024 x 768)
HD 40 GB (5 400 ot./min) 8MB
Čipová sada Mobile™ Intel® 915GM Express
4 porty USB 2.0, VGA, konektory pro sluchátka a mikrofon, napájení, RJ-11, RJ-45, S-Video, Firewire (1394a), paralelní a sériový port, Fast IR
2 patice PCMCIA typu I/II, čtečka digitálních médií 6 v 1
2780g

EDIT: Mám vyšší verzi, procesor je Centrino na 1,86GHz, paměť byla 512Mb ale hned po koupi jsem ji rozšířil na 1Gb (do volného slotu) a HDD byl Hitachi 60 GB (5400 ot/min.) vyměněn za Seagate 160 GB. Další rozdíl byl v Wifi kartě, mám tu Intel 2200BG.

Identifikace pod Linuxem

voyager
    description: Notebook
    product: HP Compaq nc6120 (PN936AV)
    vendor: Hewlett-Packard
    version: F.0C
    serial: HUB6120HLW
    width: 32 bits
    capabilities: smbios-2.3 dmi-2.3
    configuration: boot=normal chassis=notebook uuid=51943536-E6BA-DA11-1188-B5A30C1A7129
  *-core
       description: Motherboard
       product: 099C
       vendor: Hewlett-Packard
       physical id: 0
       version: KBC Version 39.1E
     *-firmware
          description: BIOS
          vendor: Hewlett-Packard
          physical id: 0
          version: 68DTD Ver. F.0C (11/21/2005)
          size: 128KB
          capacity: 960KB
          capabilities: pci pcmcia pnp upgrade shadowing cdboot bootselect edd int13floppy720 int5printscreen int9keyboard int14serial int17printer acpi usb ls120boot smartbattery biosbootspecification netboot
     *-cpu
          description: CPU
          product: Intel(R) Celeron(R) M processor         1.50GHz
          vendor: Intel Corp.
          physical id: 4
          bus info: cpu@0
          version: 6.13.8
          slot: JP12
          size: 1500MHz
          capacity: 1500MHz
          width: 32 bits
          clock: 100MHz
          capabilities: fpu fpu_exception wp vme de pse tsc msr pae mce cx8 apic sep mtrr pge mca cmov pat clflush dts acpi mmx fxsr sse sse2 ss tm pbe nx up cpufreq
        *-cache:0
             description: L1 cache
             physical id: 5
             slot: Internal L1 Cache
             size: 64KB
             capacity: 64KB
             capabilities: burst internal write-back unified
        *-cache:1
             description: L2 cache
             physical id: 6
             slot: Internal L2 Cache
             size: 1MB
             capacity: 1MB
             capabilities: burst external write-back unified
     *-memory
          description: System Memory
          physical id: a
          slot: System board or motherboard
          size: 512MB
          capacity: 2GB
        *-bank:0
             description: SODIMM DDR Synchronous 333 MHz (3.0 ns)
             product: 64D64020HDL6B
             vendor: C100000000000000
             physical id: 0
             serial: 030E0E12
             slot: DIMM #1
             size: 512MB
             width: 64 bits
             clock: 333MHz (3.003ns)
        *-bank:1
             description: SODIMM DDR Synchronous [empty]
             physical id: 1
             slot: DIMM #2
     *-pci
          description: Host bridge
          product: Mobile 915GM/PM/GMS/910GML Express Processor to DRAM Controller
          vendor: Intel Corporation
          physical id: 100
          bus info: pci@00:00.0
          version: 03
          width: 32 bits
          clock: 33MHz
        *-display:0
             description: VGA compatible controller
             product: Mobile 915GM/GMS/910GML Express Graphics Controller
             vendor: Intel Corporation
             physical id: 2
             bus info: pci@00:02.0
             logical name: /dev/fb0
             version: 03
             size: 256MB
             width: 32 bits
             clock: 33MHz
             capabilities: vga bus_master cap_list fb
             configuration: depth=8 frequency=60.01Hz mode=1024x768 visual=pseudocolor xres=1024 yres=768
             resources: iomemory:d0400000-d047ffff ioport:7000-7007 iomemory:c0000000-cfffffff iomemory:d0480000-d04bffff irq:11
        *-display:1 UNCLAIMED
             description: Display controller
             product: Mobile 915GM/GMS/910GML Express Graphics Controller
             vendor: Intel Corporation
             physical id: 2.1
             bus info: pci@00:02.1
             version: 03
             size: 512KB
             width: 32 bits
             clock: 33MHz
             capabilities: bus_master cap_list
             resources: iomemory:d0500000-d057ffff
        *-pci:0
             description: PCI bridge
             product: 82801FB/FBM/FR/FW/FRW (ICH6 Family) PCI Express Port 1
             vendor: Intel Corporation
             physical id: 1c
             bus info: pci@00:1c.0
             version: 03
             width: 32 bits
             clock: 33MHz
             capabilities: pci normal_decode bus_master cap_list
             configuration: driver=pcieport-driver
        *-usb:0
             description: USB Controller
             product: 82801FB/FBM/FR/FW/FRW (ICH6 Family) USB UHCI #1
             vendor: Intel Corporation
             physical id: 1d
             bus info: pci@00:1d.0
             version: 03
             width: 32 bits
             clock: 33MHz
             capabilities: uhci bus_master
             configuration: driver=uhci_hcd
             resources: ioport:2000-201f irq:11
           *-usbhost
                product: UHCI Host Controller
                vendor: Linux 2.6.17-gentoo-r4 uhci_hcd
                physical id: 1
                bus info: usb@2
                logical name: usb2
                version: 2.06
                capabilities: usb-1.10
                configuration: driver=hub maxpower=0mA slots=2 speed=12.0MB/s
        *-usb:1
             description: USB Controller
             product: 82801FB/FBM/FR/FW/FRW (ICH6 Family) USB UHCI #2
             vendor: Intel Corporation
             physical id: 1d.1
             bus info: pci@00:1d.1
             version: 03
             width: 32 bits
             clock: 33MHz
             capabilities: uhci bus_master
             configuration: driver=uhci_hcd
             resources: ioport:2020-203f irq:10
           *-usbhost
                product: UHCI Host Controller
                vendor: Linux 2.6.17-gentoo-r4 uhci_hcd
                physical id: 1
                bus info: usb@3
                logical name: usb3
                version: 2.06
                capabilities: usb-1.10
                configuration: driver=hub maxpower=0mA slots=2 speed=12.0MB/s
              *-usb UNCLAIMED
                   description: Bluetooth wireless interface
                   product: HP integrated Bluetooth module
                   vendor: Broadcom
                   physical id: 2
                   bus info: usb@3:2
                   version: 0.17
                   capabilities: bluetooth usb-1.10
                   configuration: maxpower=0mA speed=12.0MB/s
        *-usb:2
             description: USB Controller
             product: 82801FB/FBM/FR/FW/FRW (ICH6 Family) USB UHCI #3
             vendor: Intel Corporation
             physical id: 1d.2
             bus info: pci@00:1d.2
             version: 03
             width: 32 bits
             clock: 33MHz
             capabilities: uhci bus_master
             configuration: driver=uhci_hcd
             resources: ioport:2040-205f irq:10
           *-usbhost
                product: UHCI Host Controller
                vendor: Linux 2.6.17-gentoo-r4 uhci_hcd
                physical id: 1
                bus info: usb@4
                logical name: usb4
                version: 2.06
                capabilities: usb-1.10
                configuration: driver=hub maxpower=0mA slots=2 speed=12.0MB/s
        *-usb:3
             description: USB Controller
             product: 82801FB/FBM/FR/FW/FRW (ICH6 Family) USB UHCI #4
             vendor: Intel Corporation
             physical id: 1d.3
             bus info: pci@00:1d.3
             version: 03
             width: 32 bits
             clock: 33MHz
             capabilities: uhci bus_master
             configuration: driver=uhci_hcd
             resources: ioport:2060-207f irq:10
           *-usbhost
                product: UHCI Host Controller
                vendor: Linux 2.6.17-gentoo-r4 uhci_hcd
                physical id: 1
                bus info: usb@5
                logical name: usb5
                version: 2.06
                capabilities: usb-1.10
                configuration: driver=hub maxpower=0mA slots=2 speed=12.0MB/s
              *-usb
                   description: Mouse
                   product: Optical USB Mouse
                   vendor: Logitech
                   physical id: 1
                   bus info: usb@5:1
                   version: 3.40
                   capabilities: usb-2.00
                   configuration: driver=usbhid maxpower=100mA speed=1.5MB/s
        *-usb:4
             description: USB Controller
             product: 82801FB/FBM/FR/FW/FRW (ICH6 Family) USB2 EHCI Controller
             vendor: Intel Corporation
             physical id: 1d.7
             bus info: pci@00:1d.7
             version: 03
             width: 32 bits
             clock: 33MHz
             capabilities: ehci bus_master cap_list
             configuration: driver=ehci_hcd
             resources: iomemory:d0580000-d05803ff irq:11
           *-usbhost
                product: EHCI Host Controller
                vendor: Linux 2.6.17-gentoo-r4 ehci_hcd
                physical id: 1
                bus info: usb@1
                logical name: usb1
                version: 2.06
                capabilities: usb-2.00
                configuration: driver=hub maxpower=0mA slots=8 speed=480.0MB/s
        *-pci:1
             description: PCI bridge
             product: 82801 Mobile PCI Bridge
             vendor: Intel Corporation
             physical id: 1e
             bus info: pci@00:1e.0
             version: d3
             width: 32 bits
             clock: 33MHz
             capabilities: pci subtractive_decode bus_master cap_list
           *-network:0 UNCLAIMED
                description: Network controller
                product: BCM4318 [AirForce One 54g] 802.11g Wireless LAN Controller
                vendor: Broadcom Corporation
                physical id: 4
                bus info: pci@02:04.0
                version: 02
                width: 32 bits
                clock: 33MHz
                capabilities: bus_master
                resources: iomemory:d0000000-d0001fff irq:11
           *-pcmcia:0
                description: CardBus bridge
                product: PCIxx21/x515 Cardbus Controller
                vendor: Texas Instruments
                physical id: 6
                bus info: pci@02:06.0
                version: 00
                width: 32 bits
                clock: 33MHz
                capabilities: pcmcia bus_master cap_list
                configuration: driver=yenta_cardbus
                resources: iomemory:d0002000-d0002fff irq:10
           *-pcmcia:1
                description: CardBus bridge
                product: PCIxx21/x515 Cardbus Controller
                vendor: Texas Instruments
                physical id: 6.1
                bus info: pci@02:06.1
                version: 00
                width: 32 bits
                clock: 33MHz
                capabilities: pcmcia bus_master cap_list
                configuration: driver=yenta_cardbus
                resources: iomemory:d0003000-d0003fff irq:10
           *-firewire
                description: FireWire (IEEE 1394)
                product: OHCI Compliant IEEE 1394 Host Controller
                vendor: Texas Instruments
                physical id: 6.2
                bus info: pci@02:06.2
                version: 00
                width: 32 bits
                clock: 33MHz
                capabilities: ohci bus_master cap_list
                configuration: driver=ohci1394
                resources: iomemory:d0004000-d00047ff iomemory:d0008000-d000bfff irq:10
           *-storage UNCLAIMED
                description: Mass storage controller
                product: PCIxx21 Integrated FlashMedia Controller
                vendor: Texas Instruments
                physical id: 6.3
                bus info: pci@02:06.3
                version: 00
                width: 32 bits
                clock: 33MHz
                capabilities: storage bus_master cap_list
                resources: iomemory:d000c000-d000dfff irq:10
           *-system UNCLAIMED
                description: Generic system peripheral
                product: PCI6411, PCI6421, PCI6611, PCI6621, PCI7411, PCI7421, PCI7611, PCI7621 Secure Digital (SD) Controller
                vendor: Texas Instruments
                physical id: 6.4
                bus info: pci@02:06.4




                version: 00
                width: 32 bits
                clock: 33MHz
                capabilities: bus_master cap_list
                resources: iomemory:d000e000-d000e0ff iomemory:d000f000-d000f0ff iomemory:d0010000-d00100ff irq:10
           *-communication UNCLAIMED
                description: Communication controller
                product: PCI6411, PCI6421, PCI6611, PCI6621, PCI7411, PCI7421, PCI7611, PCI7621 Smart Card Controller (SMC)
                vendor: Texas Instruments
                physical id: 6.5
                bus info: pci@02:06.5
                version: 00
                width: 32 bits
                clock: 33MHz
                capabilities: cap_list
                resources: iomemory:d0011000-d0011fff iomemory:d0012000-d0012fff iomemory:d0013000-d0013fff iomemory:d0014000-d0014fff irq:10
           *-network:1
                description: Ethernet interface
                product: NetXtreme BCM5705M_2 Gigabit Ethernet
                vendor: Broadcom Corporation
                physical id: e
                bus info: pci@02:0e.0
                logical name: eth0
                version: 03
                serial: 00:15:60:b3:c8:93
                size: 100MB/s
                capacity: 1GB/s
                width: 64 bits
                clock: 66MHz
                capabilities: bus_master cap_list ethernet physical mii 10bt 10bt-fd 100bt 100bt-fd 1000bt 1000bt-fd autonegociation
                configuration: autonegociation=on broadcast=yes driver=tg3 driverversion=3.59 duplex=full firmware=5705-v3.24 ip=10.79.1.49 link=yes multicast=yes port=twisted pair speed=100MB/s
                resources: iomemory:d0020000-d002ffff irq:11
        *-multimedia
             description: Multimedia audio controller
             product: 82801FB/FBM/FR/FW/FRW (ICH6 Family) AC'97 Audio Controller
             vendor: Intel Corporation
             physical id: 1e.2
             bus info: pci@00:1e.2
             version: 03
             width: 32 bits
             clock: 33MHz
             capabilities: bus_master cap_list
             configuration: driver=Intel ICH
             resources: ioport:2100-21ff ioport:2200-223f iomemory:d0581000-d05811ff iomemory:d0582000-d05820ff irq:11
        *-communication
             description: Modem
             product: 82801FB/FBM/FR/FW/FRW (ICH6 Family) AC'97 Modem Controller
             vendor: Intel Corporation
             physical id: 1e.3
             bus info: pci@00:1e.3
             version: 03
             width: 32 bits
             clock: 33MHz
             capabilities: generic bus_master cap_list
             configuration: driver=Intel ICH Modem
             resources: ioport:2400-24ff ioport:2500-257f irq:10
        *-isa UNCLAIMED
             description: ISA bridge
             product: 82801FBM (ICH6M) LPC Interface Bridge
             vendor: Intel Corporation
             physical id: 1f
             bus info: pci@00:1f.0
             version: 03
             width: 32 bits
             clock: 33MHz
             capabilities: isa bus_master
        *-ide
             description: IDE interface
             product: 82801FB/FBM/FR/FW/FRW (ICH6 Family) IDE Controller
             vendor: Intel Corporation
             physical id: 1f.1
             bus info: pci@00:1f.1
             version: 03
             width: 32 bits
             clock: 33MHz
             capabilities: ide bus_master
             configuration: driver=PIIX_IDE
             resources: ioport:2580-258f irq:11
           *-ide
                description: IDE Channel 0
                physical id: 0
                bus info: ide@0
                logical name: ide0
                clock: 33MHz
              *-disk
                   description: ATA Disk
                   product: ST9408114A
                   vendor: Seagate
                   physical id: 0
                   bus info: ide@0.0
                   logical name: /dev/hda
                   version: 3.02
                   serial: 3LE0YEBH
                   size: 37GB
                   capacity: 37GB
                   capabilities: ata dma lba iordy smart security pm apm partitioned partitioned:dos
                   configuration: apm=off smart=on
                 *-volume:0
                      description: HPFS/NTFS partition
                      physical id: 1
                      bus info: ide@0.0,1
                      logical name: /dev/hda1
                      capacity: 13GB
                      capabilities: primary bootable
                 *-volume:1
                      description: Linux filesystem partition
                      physical id: 2
                      bus info: ide@0.0,2
                      logical name: /dev/hda2
                      capacity: 54MB
                      capabilities: primary
                 *-volume:2
                      description: Linux swap / Solaris partition
                      physical id: 3
                      bus info: ide@0.0,3
                      logical name: /dev/hda3
                      capacity: 737MB
                      capabilities: primary nofs
                 *-volume:3
                      description: Linux filesystem partition
                      physical id: 4
                      bus info: ide@0.0,4
                      logical name: /dev/hda4
                      capacity: 23GB
                      capabilities: primary
              *-cdrom
                   description: DVD reader
                   product: Toshiba ODD-DVD SD-C2732
                   vendor: Toshiba
                   physical id: 1
                   bus info: ide@0.1
                   logical name: /dev/hdb
                   version: 1A55
                   capabilities: packet atapi cdrom removable nonmagnetic dma lba iordy pm audio dvd
                 *-disc
                      physical id: 0
                      logical name: /dev/hdb

Postup zprovoznění pod Linuxem

Na tento notebook jsem Linux (Gentoo) přenesl pomocí tar ze staršího notebooku Fujitsu Siemens Lifebook (PIII), takže skutečná instalace neproběhla. Pak jsem přeložil jádro s podporou Pentium-M a síťové karty Broadcom NetXtreme 2 (tg3). Upravil jsem USE proměnné podle aktuálního HW a provedl překlad potřebných balíčků. Pro správnou funkci X.org je potřeba použít driver i810, usínání obrazovky zajistí DPMS.

EDIT: Nainstaloval jsem Ubuntu 8.10 beta a vše jde hned (teda, netestoval jsem FireWire a modem, do čtečky mám jenom SD kardu a externí monitor taky nemám....) Až budu mít trochu času, nainstaluju Gentoo nebo Arch, a možná se dostanu i na otestování Zenwalku.

Bluetooth
Broadcom 4318 - HP integrated Bluetooth module

Networking --->

  <*> Bluetooth subsystem support  --->

    --- Bluetooth subsystem support
    <*>   L2CAP protocol support
    <*>   SCO links support
    <*>   RFCOMM protocol support
    [*]     RFCOMM TTY support
    <*>   BNEP protocol support
    [*]     Multicast filter support
    [*]     Protocol filter support
    <*>   HIDP protocol support

Bluetooth device drivers  --->
  <*> HCI USB driver
  [*]   SCO (voice) support
  <*> HCI BCM203x USB driver
      (Broadcom Blutonium)

USB support  --->

  <*> Support for Host-side USB
  --- USB Host Controller Drivers
  <*> EHCI HCD (USB 2.0) support
  <*> OHCI HCD support
  <*> UHCI HCD (most Intel and VIA) support

Instalace:
bluez-utils, obexftp, kdebluetooth

rfcomm.conf: bind yes
Dále přidat řádku do /etc/udev/rules.d/50-udev.rules
KERNEL=="rfcomm*", NAME="%k", GROUP="tty", MODE="0666"

Modem
82801FB/FBM/FR/FW/FRW (ICH6 Family) AC'97 Modem Controller

Device Drivers --->
  Networking support --->
    <*> PPP (point-to-point protocol) support
    <*>   PPP support for async serial ports
    <*>   PPP support for sync tty ports

Advanced Linux Sound Architecture  --->
  PCI devices  --->
    <*> Intel/SiS/nVidia/AMD MC97 Modem (EXPERIMENTAL)

Instalace slmodem
http://linmodems.technion.ac.il/packages/smartlink/
/etc/conf.d/slmodem: COUNTRY=CZECH_REPUBLIC

Wi-Fi
Mám problém s wpa_supplicant a driverem Broadcom wl.o

Klávesnice
Obecná 105 kláves - cz
Speciální klávesy zjistíme přes xev

keycode 223	sleep	F13
keycode 160	mute	F14
keycode 174	zvuk +	F15
keycode 176	zvuk -	F16
keycode 115 	Windows
keycode 117 	Menu Win

Přidání kláves xmodmap -e 'keycode 223=F13'
KMix, Master výstup, přes pravé tlačítko myší nastavit globální zkratky

Poznámka

Pro základní komunikaci s mobilním telefonem lze použít KMobileTools nebo gnokii, Mobile phone device je /dev/rfcomm0, kódování UCS2

Obrázky

Dokument vytvořil: hufhendr, 3.9.2006 17:36 | Poslední úprava: sroub, 17.10.2011 15:41 | Další přispěvatelé: hufhendr | Historie změn | Zobrazeno: 3709×
