Lenovo ThinkPad T410 #2518-ASG

Technické parametry

Procesor:

• Intel Core i5 580M s frekvencí 2,66 GHz
• 3 MB L3 Cache
• 2 jádra, 4 thready
• Intel Turbo Boost s frekvencí 3,33 GHz
• Max TDP: 35 W

Operační paměť:

• 2 GB DDR3 1333 MHz

Displej:

• 14,1" TFT LCD s LED podsvícením, matný
• Rozlišení: 1440 x 900 bodů

Grafická karta:

• NVIDIA Quadro NVS3100M s 512 MB vlastní paměti

Pevný disk:

• 500 GB
• 7200 RPM
• Rozhraní Serial ATA

Mechanika:

• DVD±RW

Multimédia:

• Zvuková karta Azalia 24 bit 192KHz Audio
• Dva reproduktory
• Vestavěný mikrofon
• Webová kamera

Komunikace:

• Ethernet LAN 10/100/1000 Mbit/s
• Intel WiFi Ultimate-N 6300 (802.11a/g/n)
• BlueTooth

Ovládání:

• Klávesnice
• Touchpad
• Trackpoint

Vstupy a výstupy:

• 4x USB 2.0 (1x kombinovaný s eSata)
• 1x FireWire 400
• 1x VGA
• 1x DisplayPort
• 1x RJ-45
• 1x Mikrofon/sluchátka
• 1x Express Card 34 mm
• 1x Čtečka paměťových karet 5v1
• 1x Dokovací konektor
• 1x Čtečka otisku prstu
• 1x DC in

Napájení:

• Baterie Li-Ion (6 článků)
• Předpokládaná výdrž až 4,5 hodin

Rozměry:

• 335 x 239 x 27,6 - 31,9 mm

Hmotnost:

• cca 2,4 kg

Identifikace pod Linuxem

$ lspci -nn
00:00.0 Host bridge [0600]: Intel Corporation Core Processor DRAM Controller [8086:0044] (rev 02)
00:01.0 PCI bridge [0604]: Intel Corporation Core Processor PCI Express x16 Root Port [8086:0045] (rev 02)
00:16.0 Communication controller [0780]: Intel Corporation 5 Series/3400 Series Chipset HECI Controller [8086:3b64] (rev 06)
00:16.3 Serial controller [0700]: Intel Corporation 5 Series/3400 Series Chipset KT Controller [8086:3b67] (rev 06)
00:19.0 Ethernet controller [0200]: Intel Corporation 82577LM Gigabit Network Connection [8086:10ea] (rev 06)
00:1a.0 USB Controller [0c03]: Intel Corporation 5 Series/3400 Series Chipset USB2 Enhanced Host Controller [8086:3b3c] (rev 06)
00:1b.0 Audio device [0403]: Intel Corporation 5 Series/3400 Series Chipset High Definition Audio [8086:3b56] (rev 06)
00:1c.0 PCI bridge [0604]: Intel Corporation 5 Series/3400 Series Chipset PCI Express Root Port 1 [8086:3b42] (rev 06)
00:1c.1 PCI bridge [0604]: Intel Corporation 5 Series/3400 Series Chipset PCI Express Root Port 2 [8086:3b44] (rev 06)
00:1c.3 PCI bridge [0604]: Intel Corporation 5 Series/3400 Series Chipset PCI Express Root Port 4 [8086:3b48] (rev 06)
00:1c.4 PCI bridge [0604]: Intel Corporation 5 Series/3400 Series Chipset PCI Express Root Port 5 [8086:3b4a] (rev 06)
00:1d.0 USB Controller [0c03]: Intel Corporation 5 Series/3400 Series Chipset USB2 Enhanced Host Controller [8086:3b34] (rev 06)
00:1e.0 PCI bridge [0604]: Intel Corporation 82801 Mobile PCI Bridge [8086:2448] (rev a6)
00:1f.0 ISA bridge [0601]: Intel Corporation Mobile 5 Series Chipset LPC Interface Controller [8086:3b07] (rev 06)
00:1f.2 SATA controller [0106]: Intel Corporation 5 Series/3400 Series Chipset 6 port SATA AHCI Controller [8086:3b2f] (rev 06)
00:1f.3 SMBus [0c05]: Intel Corporation 5 Series/3400 Series Chipset SMBus Controller [8086:3b30] (rev 06)
00:1f.6 Signal processing controller [1180]: Intel Corporation 5 Series/3400 Series Chipset Thermal Subsystem [8086:3b32] (rev 06)
01:00.0 VGA compatible controller [0300]: nVidia Corporation GT218 [NVS 3100M] [10de:0a6c] (rev a2)
01:00.1 Audio device [0403]: nVidia Corporation High Definition Audio Controller [10de:0be3] (rev a1)
03:00.0 Network controller [0280]: Intel Corporation Centrino Ultimate-N 6300 [8086:4238] (rev 35)
0d:00.0 SD Host controller [0805]: Ricoh Co Ltd MMC/SD Host Controller [1180:e822] (rev 01)
0d:00.1 System peripheral [0880]: Ricoh Co Ltd Memory Stick Host Controller [1180:e230] (rev 01)
0d:00.3 FireWire (IEEE 1394) [0c00]: Ricoh Co Ltd FireWire Host Controller [1180:e832] (rev 01)
ff:00.0 Host bridge [0600]: Intel Corporation Core Processor QuickPath Architecture Generic Non-core Registers [8086:2c62] (rev 02)
ff:00.1 Host bridge [0600]: Intel Corporation Core Processor QuickPath Architecture System Address Decoder [8086:2d01] (rev 02)
ff:02.0 Host bridge [0600]: Intel Corporation Core Processor QPI Link 0 [8086:2d10] (rev 02)
ff:02.1 Host bridge [0600]: Intel Corporation Core Processor QPI Physical 0 [8086:2d11] (rev 02)
ff:02.2 Host bridge [0600]: Intel Corporation Core Processor Reserved [8086:2d12] (rev 02)
ff:02.3 Host bridge [0600]: Intel Corporation Core Processor Reserved [8086:2d13] (rev 02)

Postup zprovoznění pod Linuxem

Nainstalována 64-bitová verze Debian GNU/Linux Squeeze.

Poznámka

Zatím ověřena funkčnost:

• WiFi - Intel Corporation Centrino Ultimate-N 6300
• Ethernet - Intel Corporation 82577LM Gigabit Network Connection
• Grafika - nVidia Corporation GT218 [NVS 3100M] (3D akcelerace, externí výstupy)
• Zvuk

Na žádný problém s ovladači jsem zatím nenarazil.

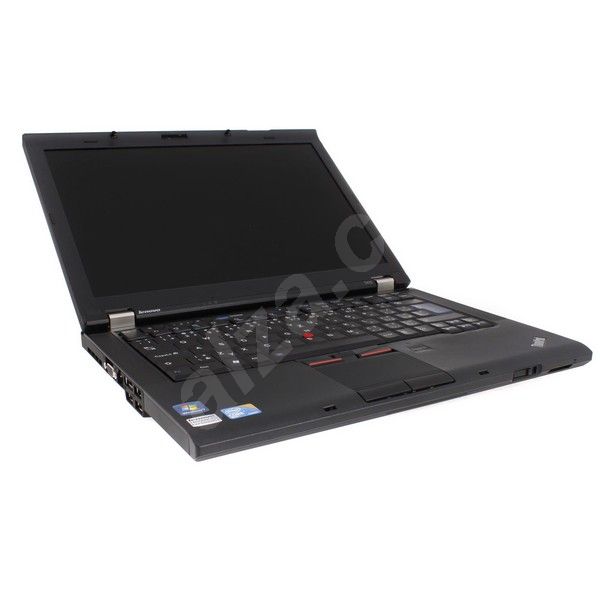

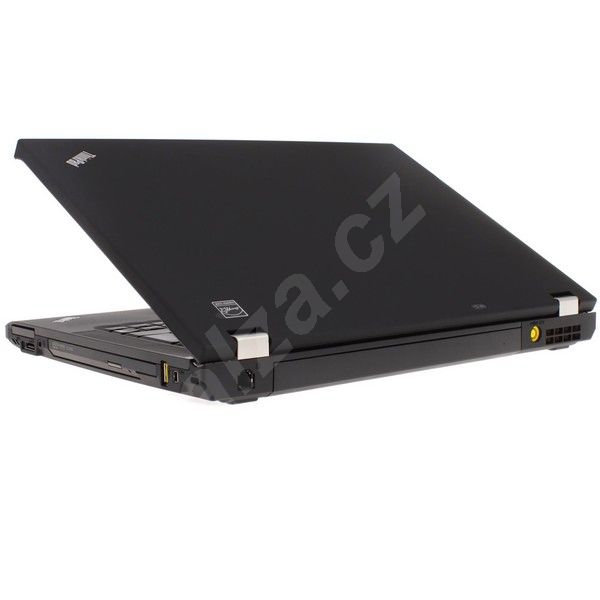

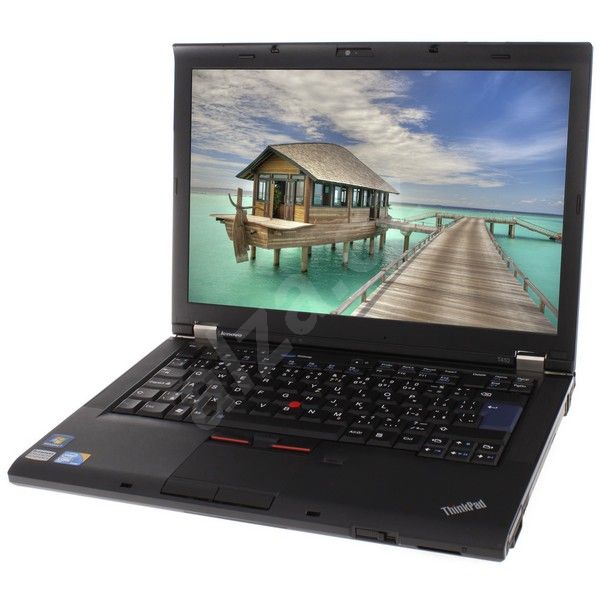

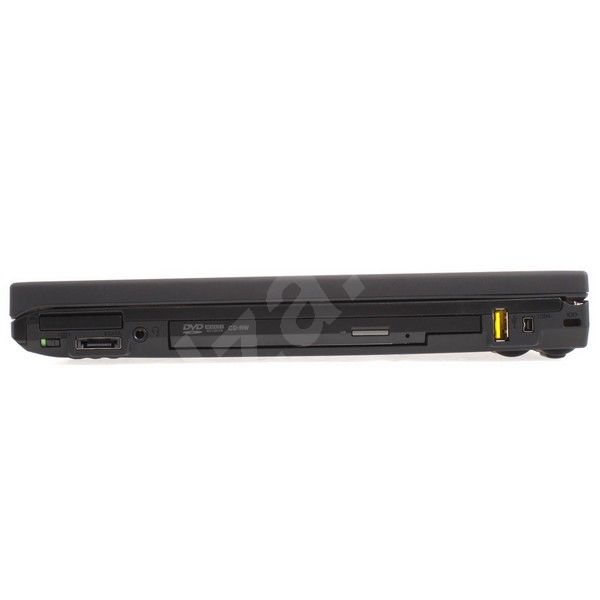

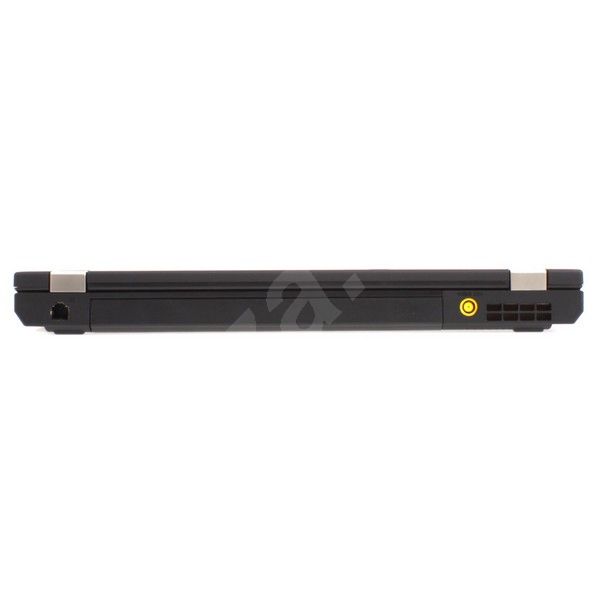

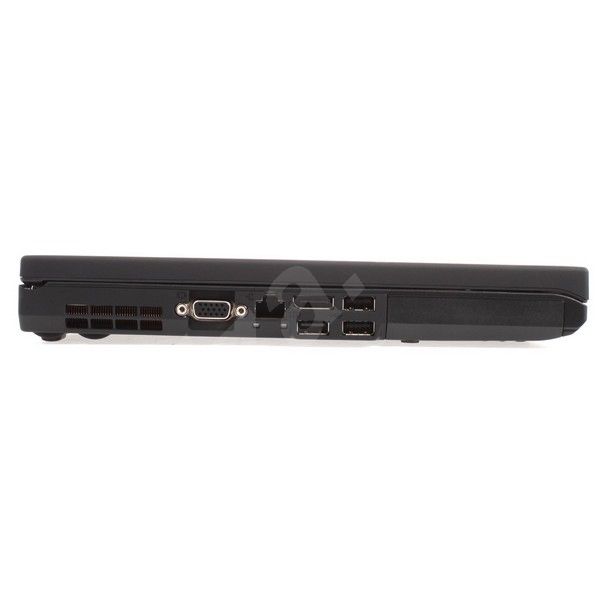

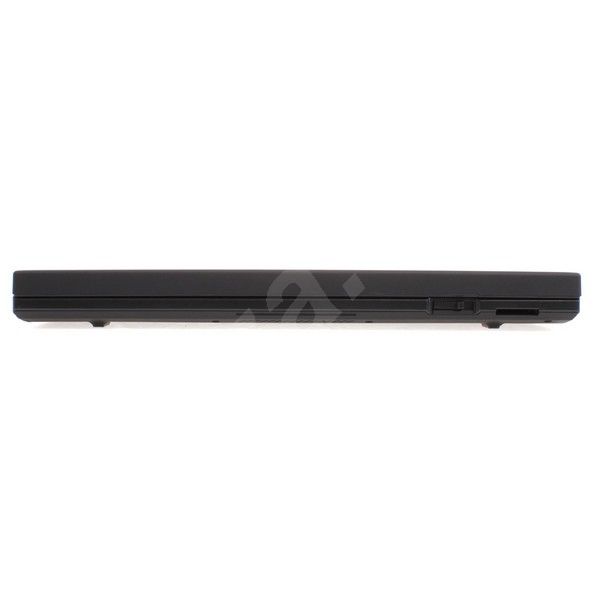

Obrázky
