| Podpora: | částečná |
| Ovladač: | v jádře |
| Adresa ovladače: | http://linux-uvc.berlios.de/ |

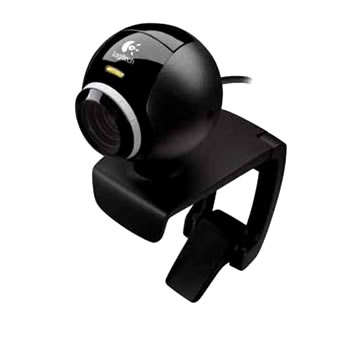

Běžné UVC (USB Video Class) zařízení. Rozlišení fotografií a vide: 640 x 480 px. Identifikace videa v mplayeru:
ID_VIDEO_FORMAT=YUY2 ID_VIDEO_BITRATE=0 ID_VIDEO_WIDTH=640 ID_VIDEO_HEIGHT=480 ID_VIDEO_FPS=15.000
dmesg:
usb 1-2: new high speed USB device using ehci_hcd and address 4 usb 1-2: configuration #1 chosen from 1 choice uvcvideo: Found UVC 1.00 device <unnamed> (046d:09a4) input: UVC Camera (046d:09a4) as /class/input/input7 4:3:1: cannot get freq at ep 0x86 uvcvideo: Failed to query (1) UVC control 1 (unit 0) : -110 (exp. 26).
lsusb:
AbcLinuxu.cz
ITBiz.cz
HDmag.cz
AbcPráce.cz
Bus 001 Device 004: ID 046d:09a4 Logitech, Inc. QuickCam E 3500
Device Descriptor:
bLength 18
bDescriptorType 1
bcdUSB 2.00
bDeviceClass 239 Miscellaneous Device
bDeviceSubClass 2 ?
bDeviceProtocol 1 Interface Association
bMaxPacketSize0 64
idVendor 0x046d Logitech, Inc.
idProduct 0x09a4 QuickCam E 3500
bcdDevice 0.06
iManufacturer 0
iProduct 0
iSerial 2 E550B423
bNumConfigurations 1
Configuration Descriptor:
bLength 9
bDescriptorType 2
wTotalLength 1183
bNumInterfaces 4
bConfigurationValue 1
iConfiguration 0
bmAttributes 0x80
(Bus Powered)
MaxPower 500mA
Interface Association:
bLength 8
bDescriptorType 11
bFirstInterface 0
bInterfaceCount 2
bFunctionClass 14 Video
bFunctionSubClass 3 Video Interface Collection
bFunctionProtocol 0
iFunction 0
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 0
bAlternateSetting 0
bNumEndpoints 1
bInterfaceClass 14 Video
bInterfaceSubClass 1 Video Control
bInterfaceProtocol 0
iInterface 0
VideoControl Interface Descriptor:
bLength 13
bDescriptorType 36
bDescriptorSubtype 1 (HEADER)
bcdUVC 1.00
wTotalLength 133
dwClockFrequency 48.000000MHz
bInCollection 1
baInterfaceNr( 0) 1
VideoControl Interface Descriptor:
bLength 18
bDescriptorType 36
bDescriptorSubtype 2 (INPUT_TERMINAL)
bTerminalID 1
wTerminalType 0x0201 Camera Sensor
bAssocTerminal 0
iTerminal 0
wObjectiveFocalLengthMin 0
wObjectiveFocalLengthMax 0
wOcularFocalLength 0
bControlSize 3
bmControls 0x0000000e
Auto-Exposure Mode
Auto-Exposure Priority
Exposure Time (Absolute)
VideoControl Interface Descriptor:
bLength 11
bDescriptorType 36
bDescriptorSubtype 5 (PROCESSING_UNIT)
Warning: Descriptor too short
bUnitID 2
bSourceID 1
wMaxMultiplier 16384
bControlSize 2
bmControls 0x0000175b
Brightness
Contrast
Saturation
Sharpness
White Balance Temperature
Backlight Compensation
Gain
Power Line Frequency
White Balance Temperature, Auto
iProcessing 0
bmVideoStandards 0x1b
None
NTSC - 525/60
SECAM - 625/50
NTSC - 625/50
VideoControl Interface Descriptor:
bLength 27
bDescriptorType 36
bDescriptorSubtype 6 (EXTENSION_UNIT)
bUnitID 4
guidExtensionCode {82066163-7050-ab49-b8cc-b3855e8d221e}
bNumControl 10
bNrPins 1
baSourceID( 0) 2
bControlSize 2
bmControls( 0) 0xff
bmControls( 1) 0x03
iExtension 0
VideoControl Interface Descriptor:
bLength 27
bDescriptorType 36
bDescriptorSubtype 6 (EXTENSION_UNIT)
bUnitID 13
guidExtensionCode {82066163-7050-ab49-b8cc-b3855e8d221f}
bNumControl 8
bNrPins 1
baSourceID( 0) 2
bControlSize 2
bmControls( 0) 0x7f
bmControls( 1) 0x01
iExtension 0
VideoControl Interface Descriptor:
bLength 28
bDescriptorType 36
bDescriptorSubtype 6 (EXTENSION_UNIT)
bUnitID 10
guidExtensionCode {82066163-7050-ab49-b8cc-b3855e8d2252}
bNumControl 24
bNrPins 1
baSourceID( 0) 4
bControlSize 3
bmControls( 0) 0xff
bmControls( 1) 0xff
bmControls( 2) 0xff
iExtension 0
VideoControl Interface Descriptor:
bLength 9
bDescriptorType 36
bDescriptorSubtype 3 (OUTPUT_TERMINAL)
bTerminalID 5
wTerminalType 0x0101 USB Streaming
bAssocTerminal 0
bSourceID 4
iTerminal 0
** UNRECOGNIZED: 20 41 01 0c 82 06 61 63 70 50 ab 49 b8 cc b3 85 5e 8d 22 50 14 01 04 03 ff ff 0f 00 00 00 00 00
** UNRECOGNIZED: 20 41 01 08 82 06 61 63 70 50 ab 49 b8 cc b3 85 5e 8d 22 51 03 01 04 03 19 00 00 00 00 00 01 00
** UNRECOGNIZED: 20 41 01 0b 82 06 61 63 70 50 ab 49 b8 cc b3 85 5e 8d 22 55 01 01 04 03 01 00 00 00 00 00 00 00
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x87 EP 7 IN
bmAttributes 3
Transfer Type Interrupt
Synch Type None
Usage Type Data
wMaxPacketSize 0x0010 1x 16 bytes
bInterval 8
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 1
bAlternateSetting 0
bNumEndpoints 0
bInterfaceClass 14 Video
bInterfaceSubClass 2 Video Streaming
bInterfaceProtocol 0
iInterface 0
VideoStreaming Interface Descriptor:
bLength 16
bDescriptorType 36
bDescriptorSubtype 1 (INPUT_HEADER)
bNumFormats 3
wTotalLength 624
bEndPointAddress 129
bmInfo 0
bTerminalLink 5
bStillCaptureMethod 2
bTriggerSupport 1
bTriggerUsage 0
bControlSize 1
bmaControls( 0) 11
bmaControls( 1) 11
bmaControls( 2) 11
VideoStreaming Interface Descriptor:
bLength 11
bDescriptorType 36
bDescriptorSubtype 6 (FORMAT_MJPEG)
bFormatIndex 1
bNumFrameDescriptors 5
bFlags 1
Fixed-size samples: Yes
bDefaultFrameIndex 3
bAspectRatioX 0
bAspectRatioY 0
bmInterlaceFlags 0x00
Interlaced stream or variable: No
Fields per frame: 1 fields
Field 1 first: No
Field pattern: Field 1 only
bCopyProtect 0
VideoStreaming Interface Descriptor:
bLength 50
bDescriptorType 36
bDescriptorSubtype 7 (FRAME_MJPEG)
bFrameIndex 1
bmCapabilities 0x00
Still image unsupported
wWidth 160
wHeight 120
dwMinBitRate 1536000
dwMaxBitRate 9216000
dwMaxVideoFrameBufferSize 38400
dwDefaultFrameInterval 333333
bFrameIntervalType 6
dwFrameInterval( 0) 333333
dwFrameInterval( 1) 400000
dwFrameInterval( 2) 500000
dwFrameInterval( 3) 666666
dwFrameInterval( 4) 1000000
dwFrameInterval( 5) 2000000
VideoStreaming Interface Descriptor:
bLength 50
bDescriptorType 36
bDescriptorSubtype 7 (FRAME_MJPEG)
bFrameIndex 2
bmCapabilities 0x00
Still image unsupported
wWidth 176
wHeight 144
dwMinBitRate 2027520
dwMaxBitRate 12165120
dwMaxVideoFrameBufferSize 50688
dwDefaultFrameInterval 333333
bFrameIntervalType 6
dwFrameInterval( 0) 333333
dwFrameInterval( 1) 400000
dwFrameInterval( 2) 500000
dwFrameInterval( 3) 666666
dwFrameInterval( 4) 1000000
dwFrameInterval( 5) 2000000
VideoStreaming Interface Descriptor:
bLength 50
bDescriptorType 36
bDescriptorSubtype 7 (FRAME_MJPEG)
bFrameIndex 3
bmCapabilities 0x00
Still image unsupported
wWidth 320
wHeight 240
dwMinBitRate 6144000
dwMaxBitRate 36864000
dwMaxVideoFrameBufferSize 153600
dwDefaultFrameInterval 666666
bFrameIntervalType 6
dwFrameInterval( 0) 333333
dwFrameInterval( 1) 400000
dwFrameInterval( 2) 500000
dwFrameInterval( 3) 666666
dwFrameInterval( 4) 1000000
dwFrameInterval( 5) 2000000
VideoStreaming Interface Descriptor:
bLength 50
bDescriptorType 36
bDescriptorSubtype 7 (FRAME_MJPEG)
bFrameIndex 4
bmCapabilities 0x00
Still image unsupported
wWidth 352
wHeight 288
dwMinBitRate 8110080
dwMaxBitRate 48660480
dwMaxVideoFrameBufferSize 202752
dwDefaultFrameInterval 666666
bFrameIntervalType 6
dwFrameInterval( 0) 333333
dwFrameInterval( 1) 400000
dwFrameInterval( 2) 500000
dwFrameInterval( 3) 666666
dwFrameInterval( 4) 1000000
dwFrameInterval( 5) 2000000
VideoStreaming Interface Descriptor:
bLength 50
bDescriptorType 36
bDescriptorSubtype 7 (FRAME_MJPEG)
bFrameIndex 5
bmCapabilities 0x00
Still image unsupported
wWidth 640
wHeight 480
dwMinBitRate 24576000
dwMaxBitRate 147456000
dwMaxVideoFrameBufferSize 614400
dwDefaultFrameInterval 666666
bFrameIntervalType 6
dwFrameInterval( 0) 333333
dwFrameInterval( 1) 400000
dwFrameInterval( 2) 500000
dwFrameInterval( 3) 666666
dwFrameInterval( 4) 1000000
dwFrameInterval( 5) 2000000
VideoStreaming Interface Descriptor:
bLength 31
bDescriptorType 36
bDescriptorSubtype 3 (STILL_IMAGE_FRAME)
bEndpointAddress 0
bNumImageSizePatterns 5
wWidth( 0) 160
wHeight( 0) 120
wWidth( 1) 176
wHeight( 1) 144
wWidth( 2) 320
wHeight( 2) 240
wWidth( 3) 352
wHeight( 3) 288
wWidth( 4) 640
wHeight( 4) 480
bNumCompressionPatterns 5
bCompression( 0) 5
bCompression( 1) 10
bCompression( 2) 15
bCompression( 3) 20
bCompression( 4) 25
VideoStreaming Interface Descriptor:
bLength 6
bDescriptorType 36
bDescriptorSubtype 13 (COLORFORMAT)
bColorPrimaries 1 (BT.709,sRGB)
bTransferCharacteristics 1 (BT.709)
bMatrixCoefficients 4 (SMPTE 170M (BT.601))
VideoStreaming Interface Descriptor:
bLength 27
bDescriptorType 36
bDescriptorSubtype 4 (FORMAT_UNCOMPRESSED)
bFormatIndex 2
bNumFrameDescriptors 5
guidFormat {59555932-0000-1000-8000-00aa00389b71}
bBitsPerPixel 16
bDefaultFrameIndex 3
bAspectRatioX 0
bAspectRatioY 0
bmInterlaceFlags 0x00
Interlaced stream or variable: No
Fields per frame: 1 fields
Field 1 first: No
Field pattern: Field 1 only
bCopyProtect 0
VideoStreaming Interface Descriptor:
bLength 50
bDescriptorType 36
bDescriptorSubtype 5 (FRAME_UNCOMPRESSED)
bFrameIndex 1
bmCapabilities 0x00
Still image unsupported
wWidth 160
wHeight 120
dwMinBitRate 1536000
dwMaxBitRate 9216000
dwMaxVideoFrameBufferSize 38400
dwDefaultFrameInterval 333333
bFrameIntervalType 6
dwFrameInterval( 0) 333333
dwFrameInterval( 1) 400000
dwFrameInterval( 2) 500000
dwFrameInterval( 3) 666666
dwFrameInterval( 4) 1000000
dwFrameInterval( 5) 2000000
VideoStreaming Interface Descriptor:
bLength 50
bDescriptorType 36
bDescriptorSubtype 5 (FRAME_UNCOMPRESSED)
bFrameIndex 2
bmCapabilities 0x00
Still image unsupported
wWidth 176
wHeight 144
dwMinBitRate 2027520
dwMaxBitRate 12165120
dwMaxVideoFrameBufferSize 50688
dwDefaultFrameInterval 333333
bFrameIntervalType 6
dwFrameInterval( 0) 333333
dwFrameInterval( 1) 400000
dwFrameInterval( 2) 500000
dwFrameInterval( 3) 666666
dwFrameInterval( 4) 1000000
dwFrameInterval( 5) 2000000
VideoStreaming Interface Descriptor:
bLength 50
bDescriptorType 36
bDescriptorSubtype 5 (FRAME_UNCOMPRESSED)
bFrameIndex 3
bmCapabilities 0x00
Still image unsupported
wWidth 320
wHeight 240
dwMinBitRate 6144000
dwMaxBitRate 36864000
dwMaxVideoFrameBufferSize 153600
dwDefaultFrameInterval 666666
bFrameIntervalType 6
dwFrameInterval( 0) 333333
dwFrameInterval( 1) 400000
dwFrameInterval( 2) 500000
dwFrameInterval( 3) 666666
dwFrameInterval( 4) 1000000
dwFrameInterval( 5) 2000000
VideoStreaming Interface Descriptor:
bLength 50
bDescriptorType 36
bDescriptorSubtype 5 (FRAME_UNCOMPRESSED)
bFrameIndex 4
bmCapabilities 0x00
Still image unsupported
wWidth 352
wHeight 288
dwMinBitRate 8110080
dwMaxBitRate 48660480
dwMaxVideoFrameBufferSize 202752
dwDefaultFrameInterval 666666
bFrameIntervalType 6
dwFrameInterval( 0) 333333
dwFrameInterval( 1) 400000
dwFrameInterval( 2) 500000
dwFrameInterval( 3) 666666
dwFrameInterval( 4) 1000000
dwFrameInterval( 5) 2000000
VideoStreaming Interface Descriptor:
bLength 50
bDescriptorType 36
bDescriptorSubtype 5 (FRAME_UNCOMPRESSED)
bFrameIndex 5
bmCapabilities 0x00
Still image unsupported
wWidth 640
wHeight 480
dwMinBitRate 24576000
dwMaxBitRate 147456000
dwMaxVideoFrameBufferSize 614400
dwDefaultFrameInterval 666666
bFrameIntervalType 6
dwFrameInterval( 0) 333333
dwFrameInterval( 1) 400000
dwFrameInterval( 2) 500000
dwFrameInterval( 3) 666666
dwFrameInterval( 4) 1000000
dwFrameInterval( 5) 2000000
VideoStreaming Interface Descriptor:
bLength 27
bDescriptorType 36
bDescriptorSubtype 3 (STILL_IMAGE_FRAME)
bEndpointAddress 0
bNumImageSizePatterns 5
wWidth( 0) 160
wHeight( 0) 120
wWidth( 1) 176
wHeight( 1) 144
wWidth( 2) 320
wHeight( 2) 240
wWidth( 3) 352
wHeight( 3) 288
wWidth( 4) 640
wHeight( 4) 480
bNumCompressionPatterns 5
bCompression( 0) 5
VideoStreaming Interface Descriptor:
bLength 6
bDescriptorType 36
bDescriptorSubtype 13 (COLORFORMAT)
bColorPrimaries 1 (BT.709,sRGB)
bTransferCharacteristics 1 (BT.709)
bMatrixCoefficients 4 (SMPTE 170M (BT.601))
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 1
bAlternateSetting 1
bNumEndpoints 1
bInterfaceClass 14 Video
bInterfaceSubClass 2 Video Streaming
bInterfaceProtocol 0
iInterface 0
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x81 EP 1 IN
bmAttributes 5
Transfer Type Isochronous
Synch Type Asynchronous
Usage Type Data
wMaxPacketSize 0x00c0 1x 192 bytes
bInterval 1
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 1
bAlternateSetting 2
bNumEndpoints 1
bInterfaceClass 14 Video
bInterfaceSubClass 2 Video Streaming
bInterfaceProtocol 0
iInterface 0
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x81 EP 1 IN
bmAttributes 5
Transfer Type Isochronous
Synch Type Asynchronous
Usage Type Data
wMaxPacketSize 0x0180 1x 384 bytes
bInterval 1
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 1
bAlternateSetting 3
bNumEndpoints 1
bInterfaceClass 14 Video
bInterfaceSubClass 2 Video Streaming
bInterfaceProtocol 0
iInterface 0
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x81 EP 1 IN
bmAttributes 5
Transfer Type Isochronous
Synch Type Asynchronous
Usage Type Data
wMaxPacketSize 0x0200 1x 512 bytes
bInterval 1
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 1
bAlternateSetting 4
bNumEndpoints 1
bInterfaceClass 14 Video
bInterfaceSubClass 2 Video Streaming
bInterfaceProtocol 0
iInterface 0
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x81 EP 1 IN
bmAttributes 5
Transfer Type Isochronous
Synch Type Asynchronous
Usage Type Data
wMaxPacketSize 0x0280 1x 640 bytes
bInterval 1
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 1
bAlternateSetting 5
bNumEndpoints 1
bInterfaceClass 14 Video
bInterfaceSubClass 2 Video Streaming
bInterfaceProtocol 0
iInterface 0
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x81 EP 1 IN
bmAttributes 5
Transfer Type Isochronous
Synch Type Asynchronous
Usage Type Data
wMaxPacketSize 0x0320 1x 800 bytes
bInterval 1
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 1
bAlternateSetting 6
bNumEndpoints 1
bInterfaceClass 14 Video
bInterfaceSubClass 2 Video Streaming
bInterfaceProtocol 0
iInterface 0
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x81 EP 1 IN
bmAttributes 5
Transfer Type Isochronous
Synch Type Asynchronous
Usage Type Data
wMaxPacketSize 0x03b0 1x 944 bytes
bInterval 1
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 1
bAlternateSetting 7
bNumEndpoints 1
bInterfaceClass 14 Video
bInterfaceSubClass 2 Video Streaming
bInterfaceProtocol 0
iInterface 0
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x81 EP 1 IN
bmAttributes 5
Transfer Type Isochronous
Synch Type Asynchronous
Usage Type Data
wMaxPacketSize 0x0a80 2x 640 bytes
bInterval 1
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 1
bAlternateSetting 8
bNumEndpoints 1
bInterfaceClass 14 Video
bInterfaceSubClass 2 Video Streaming
bInterfaceProtocol 0
iInterface 0
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x81 EP 1 IN
bmAttributes 5
Transfer Type Isochronous
Synch Type Asynchronous
Usage Type Data
wMaxPacketSize 0x0b20 2x 800 bytes
bInterval 1
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 1
bAlternateSetting 9
bNumEndpoints 1
bInterfaceClass 14 Video
bInterfaceSubClass 2 Video Streaming
bInterfaceProtocol 0
iInterface 0
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x81 EP 1 IN
bmAttributes 5
Transfer Type Isochronous
Synch Type Asynchronous
Usage Type Data
wMaxPacketSize 0x0be0 2x 992 bytes
bInterval 1
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 1
bAlternateSetting 10
bNumEndpoints 1
bInterfaceClass 14 Video
bInterfaceSubClass 2 Video Streaming
bInterfaceProtocol 0
iInterface 0
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x81 EP 1 IN
bmAttributes 5
Transfer Type Isochronous
Synch Type Asynchronous
Usage Type Data
wMaxPacketSize 0x1380 3x 896 bytes
bInterval 1
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 1
bAlternateSetting 11
bNumEndpoints 1
bInterfaceClass 14 Video
bInterfaceSubClass 2 Video Streaming
bInterfaceProtocol 0
iInterface 0
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x81 EP 1 IN
bmAttributes 5
Transfer Type Isochronous
Synch Type Asynchronous
Usage Type Data
wMaxPacketSize 0x13fc 3x 1020 bytes
bInterval 1
Interface Association:
bLength 8
bDescriptorType 11
bFirstInterface 2
bInterfaceCount 2
bFunctionClass 1 Audio
bFunctionSubClass 2 Streaming
bFunctionProtocol 0
iFunction 0
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 2
bAlternateSetting 0
bNumEndpoints 0
bInterfaceClass 1 Audio
bInterfaceSubClass 1 Control Device
bInterfaceProtocol 0
iInterface 0
AudioControl Interface Descriptor:
bLength 9
bDescriptorType 36
bDescriptorSubtype 1 (HEADER)
bcdADC 1.00
wTotalLength 38
bInCollection 1
baInterfaceNr( 0) 3
AudioControl Interface Descriptor:
bLength 12
bDescriptorType 36
bDescriptorSubtype 2 (INPUT_TERMINAL)
bTerminalID 1
wTerminalType 0x0201 Microphone
bAssocTerminal 0
bNrChannels 1
wChannelConfig 0x0000
iChannelNames 0
iTerminal 0
AudioControl Interface Descriptor:
bLength 9
bDescriptorType 36
bDescriptorSubtype 3 (OUTPUT_TERMINAL)
bTerminalID 3
wTerminalType 0x0101 USB Streaming
bAssocTerminal 1
bSourceID 5
iTerminal 0
AudioControl Interface Descriptor:
bLength 8
bDescriptorType 36
bDescriptorSubtype 6 (FEATURE_UNIT)
bUnitID 5
bSourceID 1
bControlSize 1
bmaControls( 0) 0x03
Mute
Volume
iFeature 0
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 3
bAlternateSetting 0
bNumEndpoints 0
bInterfaceClass 1 Audio
bInterfaceSubClass 2 Streaming
bInterfaceProtocol 0
iInterface 0
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 3
bAlternateSetting 1
bNumEndpoints 1
bInterfaceClass 1 Audio
bInterfaceSubClass 2 Streaming
bInterfaceProtocol 0
iInterface 0
AudioStreaming Interface Descriptor:
bLength 7
bDescriptorType 36
bDescriptorSubtype 1 (AS_GENERAL)
bTerminalLink 3
bDelay 1 frames
wFormatTag 1 PCM
AudioStreaming Interface Descriptor:
bLength 11
bDescriptorType 36
bDescriptorSubtype 2 (FORMAT_TYPE)
bFormatType 1 (FORMAT_TYPE_I)
bNrChannels 1
bSubframeSize 2
bBitResolution 16
bSamFreqType 1 Discrete
tSamFreq[ 0] 16000
Endpoint Descriptor:
bLength 9
bDescriptorType 5
bEndpointAddress 0x86 EP 6 IN
bmAttributes 5
Transfer Type Isochronous
Synch Type Asynchronous
Usage Type Data
wMaxPacketSize 0x0024 1x 36 bytes
bInterval 4
bRefresh 0
bSynchAddress 0
AudioControl Endpoint Descriptor:
bLength 7
bDescriptorType 37
bDescriptorSubtype 1 (EP_GENERAL)
bmAttributes 0x01
Sampling Frequency
bLockDelayUnits 0 Undefined
wLockDelay 0 Undefined
Device Qualifier (for other device speed):
bLength 10
bDescriptorType 6
bcdUSB 2.00
bDeviceClass 239 Miscellaneous Device
bDeviceSubClass 2 ?
bDeviceProtocol 1 Interface Association
bMaxPacketSize0 64
bNumConfigurations 1
Device Status: 0x0000
(Bus Powered)
Obraz funguje bez většího snažení. Fungují Cheese, Ekiga i Skype.
Mikrofon také funguje. Nahrávat z příkazové řádky lze například pomocí:
arecord -f S16_LE -D hw:2,0 test.wav
Tlačítko na kamerce se mi nepodařilo nijak rozchodit. Možná by to nějak šlo přes evdev ovladač v Xkách. Jediné, co lze z tlačítka získat je následující:
# evtest /dev/input/event6 Input driver version is 1.0.0 Input device ID: bus 0x3 vendor 0x46d product 0x9a4 version 0x6 Input device name: "UVC Camera (046d:09a4)" Supported events: Event type 0 (Sync) Event type 1 (Key) Event code 256 (Btn0) Testing ... (interrupt to exit) Event: time 1232061773.168589, type 1 (Key), code 256 (Btn0), value 1 Event: time 1232061773.744499, type 1 (Key), code 256 (Btn0), value 0
Zaostřování je manuální. Kvalita obrazu i zvuku uspokojivá. Obraz poměrně dobrý i za zhoršených světelných podmínek.
Dokument vytvořil: Valoun, 13.1.2009 08:20 | Poslední úprava: Valoun, 27.2.2011 15:09 | Historie změn | Zobrazeno: 1902×
Tiskni
Sdílej:
