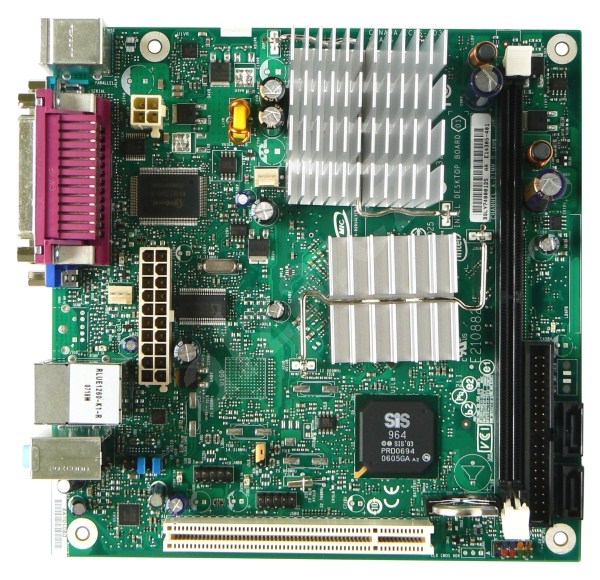

Intel Little Valley 2 D201GLY2

Podpora:	kompletní
Ovladač:	v jádře

Technické parametry

Platí pro Intel D201GLY2/D201GLY2A/D201GLY2T

• CPU: Intel Celeron 220 1.2 GHz (64-bitový, připájený k desce)
• northbridge: SiS 662, southbridge: SiS 964
• jeden slot na 240-pinovou DDR2 533 MHz (667 certifikovaná na 533 poběží)
• oficiálně maximum 1 GB RAM, 2 GB ověřeny jako funkční
• grafický adaptér: SiS Mirage 1 sdílející systémovou paměť
• zvuk: Analog Devices AD1888 (AC97)
• síťové rozhraní: Broadcom 10/100 Mbit LAN
• legacy rozhraní: Winbond W83627DHG-B pro podporu seriového, paralelního a dvou PS/2 portů
• 6× USB 2.0 port
• 2× SATA 1.5 Gbit
• 1× PATA s podporou UDMA 33 a ATA-66/100/133
• 1× S-Video výstup (jen Intel D201GLY2T)
• 1× seriový port
• 1× paralelní port
• PS/2 porty pro klávesnici a myš
• 1× standardní PCI rozhraní
• systémový chladič na procesoru (jen Intel D201GLY2A)
• formát µATX — 171 × 171 mm (ve skutečnosti je to ale spíše miniITX, nesedí jen maximální výška desky)

Identifikace pod Linuxem

# lspci
00:00.0 Host bridge: Silicon Integrated Systems [SiS] 662 Host (rev 01)
00:01.0 PCI bridge: Silicon Integrated Systems [SiS] SiS AGP Port (virtual PCI-to-PCI bridge)
00:02.0 ISA bridge: Silicon Integrated Systems [SiS] SiS964 [MuTIOL Media IO] (rev 36)
00:02.5 IDE interface: Silicon Integrated Systems [SiS] 5513 [IDE] (rev 01)
00:02.7 Multimedia audio controller: Silicon Integrated Systems [SiS] AC'97 Sound Controller (rev a0)
00:03.0 USB Controller: Silicon Integrated Systems [SiS] USB 1.0 Controller (rev 0f)
00:03.1 USB Controller: Silicon Integrated Systems [SiS] USB 1.0 Controller (rev 0f)
00:03.2 USB Controller: Silicon Integrated Systems [SiS] USB 1.0 Controller (rev 0f)
00:03.3 USB Controller: Silicon Integrated Systems [SiS] USB 2.0 Controller
00:04.0 Ethernet controller: Silicon Integrated Systems [SiS] SiS900 PCI Fast Ethernet (rev 91)
00:05.0 IDE interface: Silicon Integrated Systems [SiS] SATA (rev 01)
00:1f.0 PCI bridge: Silicon Integrated Systems [SiS] PCI-to-PCI bridge
01:00.0 VGA compatible controller: Silicon Integrated Systems [SiS] 661/741/760 PCI/AGP or 662/761Gx PCIE VGA Display Adapter (rev 04)

# cat /proc/cpuinfo
processor       : 0
vendor_id       : GenuineIntel
cpu family      : 6
model           : 22
model name      : Intel(R) Celeron(R) CPU          220  @ 1.20GHz
stepping        : 1
cpu MHz         : 1200.130
cache size      : 512 KB
fdiv_bug        : no
hlt_bug         : no
f00f_bug        : no
coma_bug        : no
fpu             : yes
fpu_exception   : yes
cpuid level     : 10
wp              : yes
flags           : fpu vme de pse tsc msr pae mce cx8 apic sep mtrr pge mca cmov pat pse36 clflush dts acpi mmx fxsr sse sse2 ss tm pbe nx lm constant_tsc up pni monitor ds_cpl tm2 ssse3 cx16 xtpr lahf_lm
bogomips        : 2401.81
clflush size    : 64

# lshw
newboy
    description: Computer
    width: 32 bits
    capabilities: smbios-2.4 dmi-2.4
    configuration: boot=normal uuid=5647912A-7481-11DC-A5FB-000C6E080217
  *-core
       description: Motherboard
       product: D201GLY
       vendor: Intel Corporation
       physical id: 0
       version: AAE14305-401
       serial: BQLY7400039G
       slot: Base Board Chassis Location
     *-cpu
          description: CPU
          product: Intel(R) Celeron(R) CPU          220  @ 1.20GHz
          vendor: Intel Corp.
          physical id: 0
          bus info: cpu@0
          version: 6.6.1
          serial: 0001-0661-0000-0000-0000-0000
          size: 1200MHz
          capacity: 1333MHz
          width: 64 bits
          clock: 133MHz
          capabilities: fpu fpu_exception wp vme de pse tsc msr pae mce cx8 apic sep mtrr pge mca cmov pat pse36 clflush dts acpi mmx fxsr sse sse2 ss tm pbe nx x86-64 constant_tsc up pni monitor ds_cpl tm2 ssse3 cx16 xtpr lahf_lm
        *-cache:0
             description: L2 cache
             physical id: 1
             slot: Unknown
             size: 512KB
             capacity: 512KB
             capabilities: asynchronous internal write-back unified
        *-cache:1
             description: L1 cache
             physical id: 3
             slot: Unknown
             size: 32KB
             capacity: 32KB
             capabilities: asynchronous internal write-back data
     *-cache
          description: L1 cache
          physical id: 2
          slot: Unknown
          size: 32KB
          capacity: 32KB
          capabilities: asynchronous internal write-back instruction
     *-firmware
          description: BIOS
          vendor: Intel Corp.
          physical id: 4
          version: LY66210M.86A.0122.2007.0822.2001 (08/22/2007)
          size: 64KB
          capacity: 448KB
          capabilities: pci upgrade shadowing cdboot bootselect edd int9keyboard int14serial int17printer int10video acpi usb zipboot biosbootspecification netboot
     *-memory
          description: System Memory
          physical id: 11
          slot: System board or motherboard
          size: 1GB
          capacity: 3GB
        *-bank
             description: DIMM Synchronous 533 MHz (1.9 ns)
             product: 0x393955353331362D3030322E4130324C4600
             vendor: 0x7F98000000000000
             physical id: 0
             serial: 0x701C56F1
             slot: DIMM0
             size: 1GB
             width: 64 bits
             clock: 533MHz (1.9ns)
     *-pci
          description: Host bridge
          product: 662 Host
          vendor: Silicon Integrated Systems [SiS]
          physical id: 100
          bus info: pci@0000:00:00.0
          version: 01
          width: 32 bits
          clock: 33MHz
          configuration: latency=32
        *-pci:0
             description: PCI bridge
             product: SiS AGP Port (virtual PCI-to-PCI bridge)
             vendor: Silicon Integrated Systems [SiS]
             physical id: 1
             bus info: pci@0000:00:01.0
             version: 00
             width: 32 bits
             clock: 66MHz
             capabilities: pci normal_decode bus_master
           *-display
                description: VGA compatible controller
                product: 661/741/760 PCI/AGP or 662/761Gx PCIE VGA Display Adapter
                vendor: Silicon Integrated Systems [SiS]
                physical id: 0
                bus info: pci@0000:01:00.0
                version: 04
                width: 32 bits
                clock: 66MHz
                capabilities: pm agp agp-3.0 vga cap_list
                configuration: latency=0
        *-isa
             description: ISA bridge
             product: SiS964 [MuTIOL Media IO]
             vendor: Silicon Integrated Systems [SiS]
             physical id: 2
             bus info: pci@0000:00:02.0
             version: 36
             width: 32 bits
             clock: 33MHz
             capabilities: isa bus_master
             configuration: latency=0
        *-ide:0
             description: IDE interface
             product: 5513 [IDE]
             vendor: Silicon Integrated Systems [SiS]
             physical id: 2.5
             bus info: pci@0000:00:02.5
             logical name: scsi0
             version: 01
             width: 32 bits
             clock: 33MHz
             capabilities: ide pm bus_master cap_list emulated
             configuration: driver=pata_sis latency=32 module=pata_sis
           *-cdrom
                description: DVD-RAM writer
                product: DVDRAM GSA-4167B
                vendor: HL-DT-ST
                physical id: 0.0.0
                bus info: scsi@0:0.0.0
                logical name: /dev/cdrom
                logical name: /dev/dvd
                logical name: /dev/scd0
                logical name: /dev/sr0
                version: DL13
                capabilities: removable audio cd-r cd-rw dvd dvd-r dvd-ram
                configuration: ansiversion=5 status=open
        *-multimedia
             description: Multimedia audio controller
             product: AC'97 Sound Controller
             vendor: Silicon Integrated Systems [SiS]
             physical id: 2.7
             bus info: pci@0000:00:02.7
             version: a0
             width: 32 bits
             clock: 33MHz
             capabilities: pm bus_master cap_list
             configuration: driver=Intel ICH latency=32 maxlatency=11 mingnt=52 module=snd_intel8x0
        *-usb:0
             description: USB Controller
             product: USB 1.0 Controller
             vendor: Silicon Integrated Systems [SiS]
             physical id: 3
             bus info: pci@0000:00:03.0
             version: 0f
             width: 32 bits
             clock: 33MHz
             capabilities: ohci bus_master
             configuration: driver=ohci_hcd latency=64 maxlatency=80 module=ohci_hcd
        *-usb:1
             description: USB Controller
             product: USB 1.0 Controller
             vendor: Silicon Integrated Systems [SiS]
             physical id: 3.1
             bus info: pci@0000:00:03.1
             version: 0f
             width: 32 bits
             clock: 33MHz
             capabilities: ohci bus_master
             configuration: driver=ohci_hcd latency=64 maxlatency=80 module=ohci_hcd
        *-usb:2
             description: USB Controller
             product: USB 1.0 Controller
             vendor: Silicon Integrated Systems [SiS]
             physical id: 3.2
             bus info: pci@0000:00:03.2
             version: 0f
             width: 32 bits
             clock: 33MHz
             capabilities: ohci bus_master
             configuration: driver=ohci_hcd latency=64 maxlatency=80 module=ohci_hcd
        *-usb:3
             description: USB Controller
             product: USB 2.0 Controller
             vendor: Silicon Integrated Systems [SiS]
             physical id: 3.3
             bus info: pci@0000:00:03.3
             version: 00
             width: 32 bits
             clock: 33MHz
             capabilities: pm ehci bus_master cap_list
             configuration: driver=ehci_hcd latency=32 maxlatency=80 module=ehci_hcd
        *-network
             description: Ethernet interface
             product: SiS900 PCI Fast Ethernet
             vendor: Silicon Integrated Systems [SiS]
             physical id: 4
             bus info: pci@0000:00:04.0
             logical name: eth0
             version: 91
             serial: 00:1c:c0:07:d2:16
             size: 100MB/s
             capacity: 100MB/s
             width: 32 bits
             clock: 33MHz
             capabilities: pm bus_master cap_list ethernet physical tp mii 10bt 10bt-fd 100bt 100bt-fd autonegotiation
             configuration: autonegotiation=on broadcast=yes driver=sis900 driverversion=v1.08.10 Apr. 2 2006 duplex=full ip=172.22.0.40 latency=32 link=yes maxlatency=11 mingnt=52 module=sis900 multicast=yes port=MII speed=100MB/s
        *-ide:1
             description: IDE interface
             product: SATA
             vendor: Silicon Integrated Systems [SiS]
             physical id: 5
             bus info: pci@0000:00:05.0
             logical name: scsi2
             version: 01
             width: 32 bits
             clock: 66MHz
             capabilities: ide pm bus_master cap_list emulated
             configuration: driver=sata_sis latency=32 module=sata_sis
           *-disk
                description: SCSI Disk
                product: blabla
                vendor: ATA
                physical id: 0.0.0
                bus info: scsi@2:0.0.0
                logical name: /dev/sda
                version: 3.AA
                serial: blabla
                size: 186GB
                capabilities: partitioned partitioned:dos
                configuration: ansiversion=5
              *-volume:0
                   description: HPFS/NTFS partition
                   physical id: 1
                   bus info: scsi@2:0.0.0,1
                   logical name: /dev/sda1
                   capacity: 19GB
                   capabilities: primary bootable
              *-volume:1
                   description: Linux swap / Solaris partition
                   physical id: 2
                   bus info: scsi@2:0.0.0,2
                   logical name: /dev/sda2
                   capacity: 956MB
                   capabilities: primary nofs
              *-volume:2
                   description: Linux filesystem partition
                   physical id: 3
                   bus info: scsi@2:0.0.0,3
                   logical name: /dev/sda3
                   capacity: 18GB
                   capabilities: primary
              *-volume:3
                   description: Extended partition
                   physical id: 4
                   bus info: scsi@2:0.0.0,4
                   logical name: /dev/sda4
                   size: 18GB
                   capacity: 18GB
                   capabilities: primary extended partitioned partitioned:extended
                 *-logicalvolume
                      description: Linux filesystem partition
                      physical id: 5
                      logical name: /dev/sda5
                      capacity: 18GB
                      capabilities: bootable
        *-pci:1
             description: PCI bridge
             product: PCI-to-PCI bridge
             vendor: Silicon Integrated Systems [SiS]
             physical id: 1f
             bus info: pci@0000:00:1f.0
             version: 00
             width: 32 bits
             clock: 33MHz
             capabilities: pci pciexpress msi pm normal_decode bus_master cap_list
             configuration: driver=pcieport-driver

# hwinfo --short
cpu:
                       Intel(R) Celeron(R) CPU          220  @ 1.20GHz, 1200 MHz
keyboard:
  /dev/input/event1    AT Translated Set 2 keyboard
mouse:
  /dev/input/mice      Logitech N48/M-BB48 [FirstMouse Plus]
  /dev/input/mice      Apple Macintosh mouse button emulation
graphics card:
                       Intel SiS 660
sound:
                       Intel AC'97 Sound Controller
storage:
                       Intel 5513 [IDE]
                       Intel SATA
network:
  eth0                 Intel SiS900 PCI Fast Ethernet
network interface:
  lo                   Loopback network interface
  eth0                 Ethernet network interface
  tun0                 Network Interface
disk:
  /dev/sda             blabla
partition:
  /dev/sda1            Partition
  /dev/sda2            Partition
  /dev/sda3            Partition
  /dev/sda4            Partition
  /dev/sda5            Partition
cdrom:
  /dev/sr0             HL-DT-ST DVDRAM GSA-4167B
usb controller:
                       Intel USB 1.0 Controller
                       Intel USB 1.0 Controller
                       Intel USB 1.0 Controller
                       Silicon Integrated USB 2.0 Controller
bios:
                       BIOS
bridge:
                       Silicon Integrated Host bridge
                       Silicon Integrated SiS AGP Port (virtual PCI-to-PCI bridge)
                       Silicon Integrated SiS964 [MuTIOL Media IO]
                       Silicon Integrated PCI-to-PCI bridge
hub:
                       Linux 2.6.22-14-generic ohci_hcd OHCI Host Controller
                       Linux 2.6.22-14-generic ohci_hcd OHCI Host Controller
                       Linux 2.6.22-14-generic ohci_hcd OHCI Host Controller
                       Linux 2.6.22-14-generic ehci_hcd EHCI Host Controller
memory:
                       Main Memory
unknown:
                       FPU
                       DMA controller
                       PIC
                       Timer
                       RTC
                       Keyboard controller
  /dev/lp0             Parallel controller
                       PS/2 Controller
                       PnP Unclassified device
                       PnP Unclassified device
                       PnP Unclassified device
                       PnP Unclassified device
                       PnP Unclassified device
                       PnP Unclassified device
                       PnP Unclassified device
                       PnP Unclassified device
                       PnP Unclassified device
                       PnP Unclassified device
                       PnP Unclassified device
  /dev/ttyS0           16550A

Postup zprovoznění pod Linuxem

Všechno funguje out-of-box (openSUSE 10.3, CentOS 5.1), jen s podporou APCI je to trochu horší, to by ale na desktopu nemělo vadit.

Poznámka

lshw sice píše, že jde o D201GLYL, ve skutečnosti je to ale D201GLY2. Pasivní variantu je možné použít pouze v případě, že existuje dostatečné proudění kolem desky. Jinak se totiž přehřívá čipset (paradoxně hřeje mnohem více než CPU). V X je doporučeno použít místo ovladače sis ovladač vesa, jinak jsou pruhy v obraze.

Nebo je možné si stáhnout funkční ovladač přímo ze stránky Intel Download Center.
(Změna ovladače pro neznalé:
v adresáři s ovladači pro Xorg, u Mandrivi 2008.0 v /usr/lib/xorg/modules/drivers, nahraďte stávající ovladač sis_drv.so a sis_drv.la tím staženým a v nastavení zvolte ovladače v Xorg a tam již zmíněný sis čip)
Tento ovladač opravdu funguje. Sice bez 3D ale nejsem si jist zda to tento čip vůbec umí.

Bohužel nefunguje acpi. Funguje měření teploty a S.M.A.R.T. (je nutné použít parametr "-d ata") u disku i měření teploty procesoru a desky a otáček ventilátoru (s modulem w83627ehf).

Pro desktop s nízkou spotřebou (19W) optimální volba, testováno na Xubuntu 7.10. Jen je třeba použít odlišný zdroj než pro běžný desktop, ideálně něco typu PicoPSU. Běžný zdroj má totiž s tak nízkým odběrem nízkou účinnost a tím vysokou spotřebu (může být až kolem 50W).

Nevím, zda je to jen problém mého kusu, čas od času dochází ale k resetům SATA řadiče

ata1.00: exception Emask 0x2 SAct 0x0 SErr 0x400400 action 0x2
ata1.00: BMDMA stat 0x5
ata1: SError: { Proto Handshk }
ata1.00: cmd ca/00:60:c0:6a:45/00:00:00:00:00/e5 tag 0 dma 49152 out
         res 51/84:53:cd:6a:45/84:00:24:00:00/e5 Emask 0x12 (ATA bus error)
ata1.00: status: { DRDY ERR }
ata1.00: error: { ICRC ABRT }
ata1: soft resetting link
ata1: SATA link up 1.5 Gbps (SStatus 113 SControl 300)
ata1.00: configured for UDMA/133
ata1: EH complete
SCSI device sda: 625142448 512-byte hdwr sectors (320073 MB)
sda: Write Protect is off
sda: Mode Sense: 00 3a 00 00
SCSI device sda: drive cache: write back

Naštěstí to, aspoň zatím, nemá žádné fatální následky.

Obrázky

Dokument vytvořil: jurasek, 9.12.2007 13:53 | Poslední úprava: Jan Grmela, 27.2.2011 15:08 | Další přispěvatelé: Roger, frEon | Historie změn | Zobrazeno: 6154×
